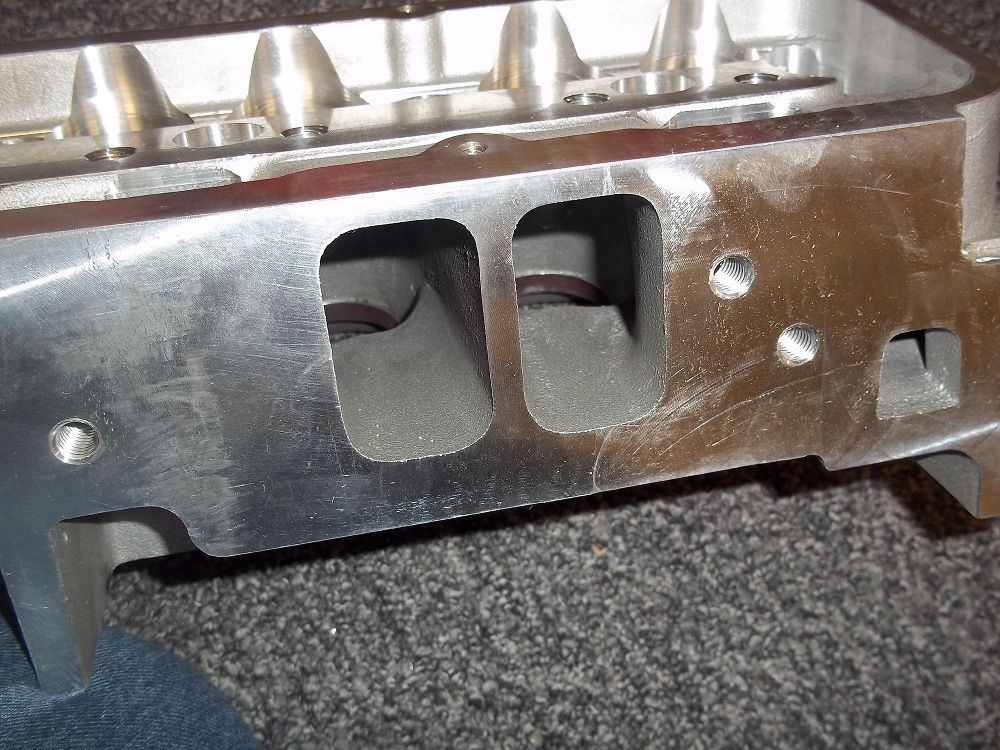

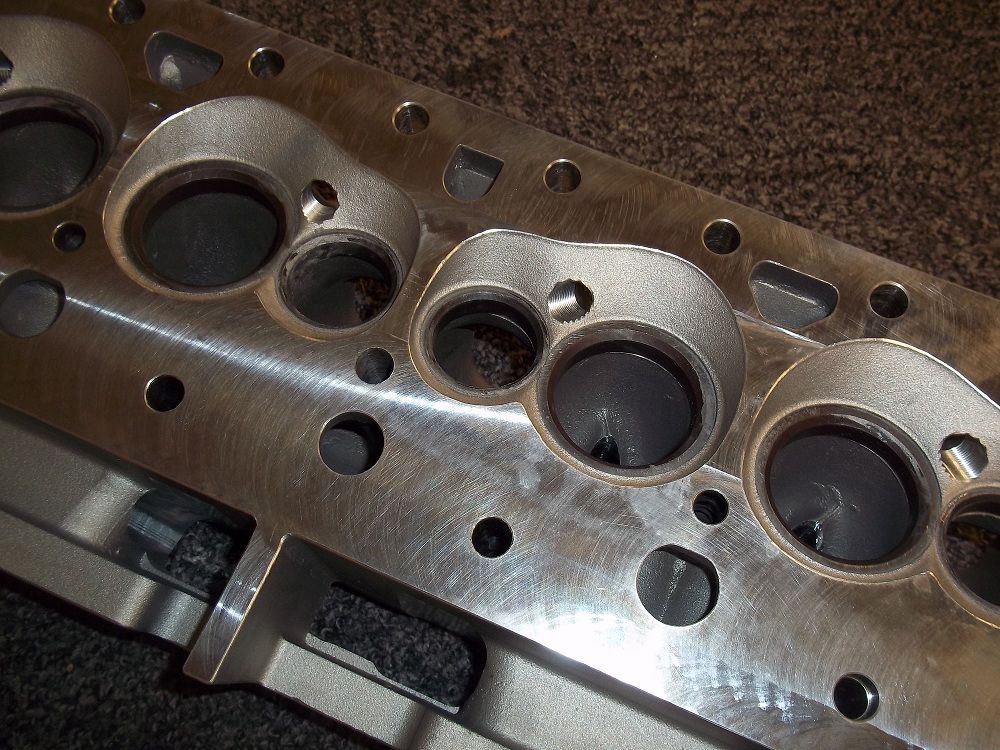

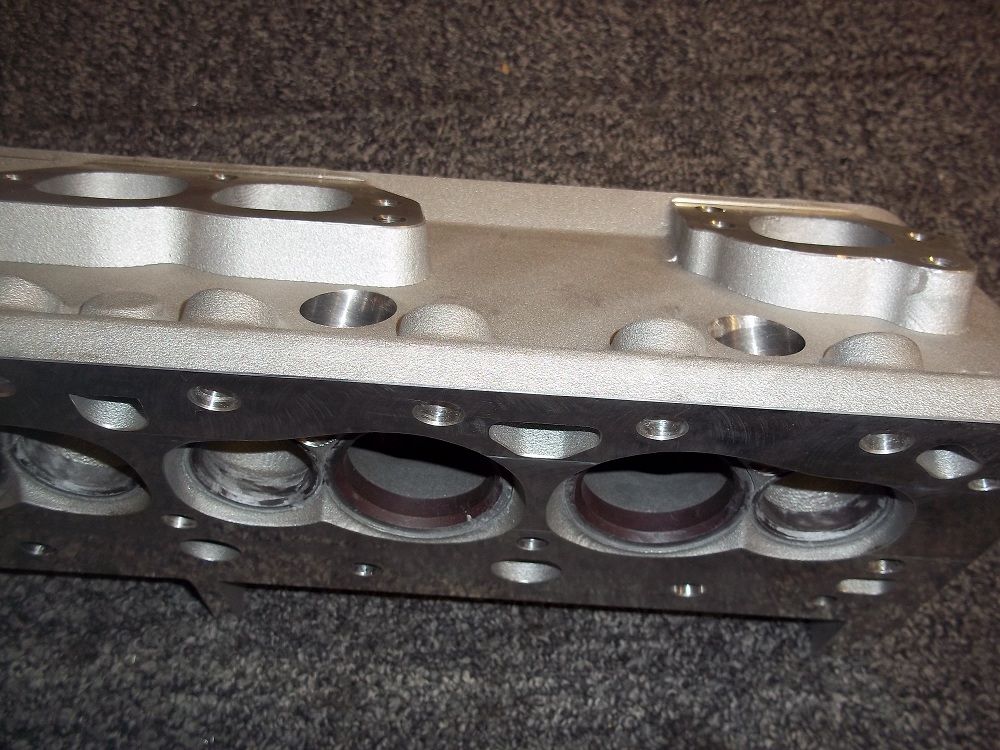

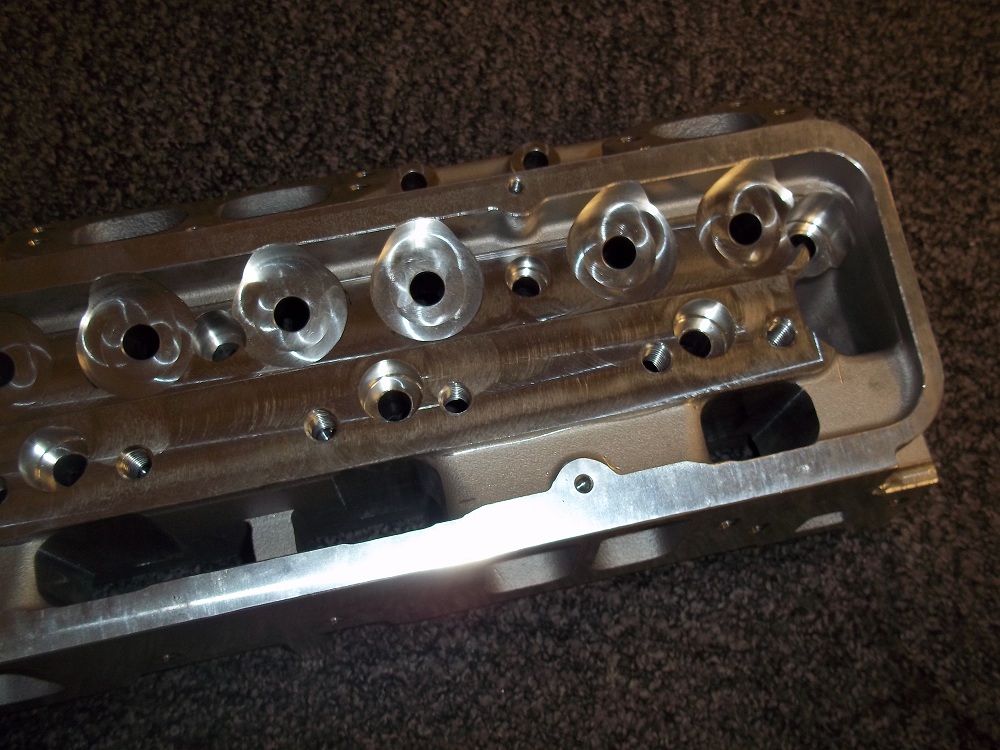

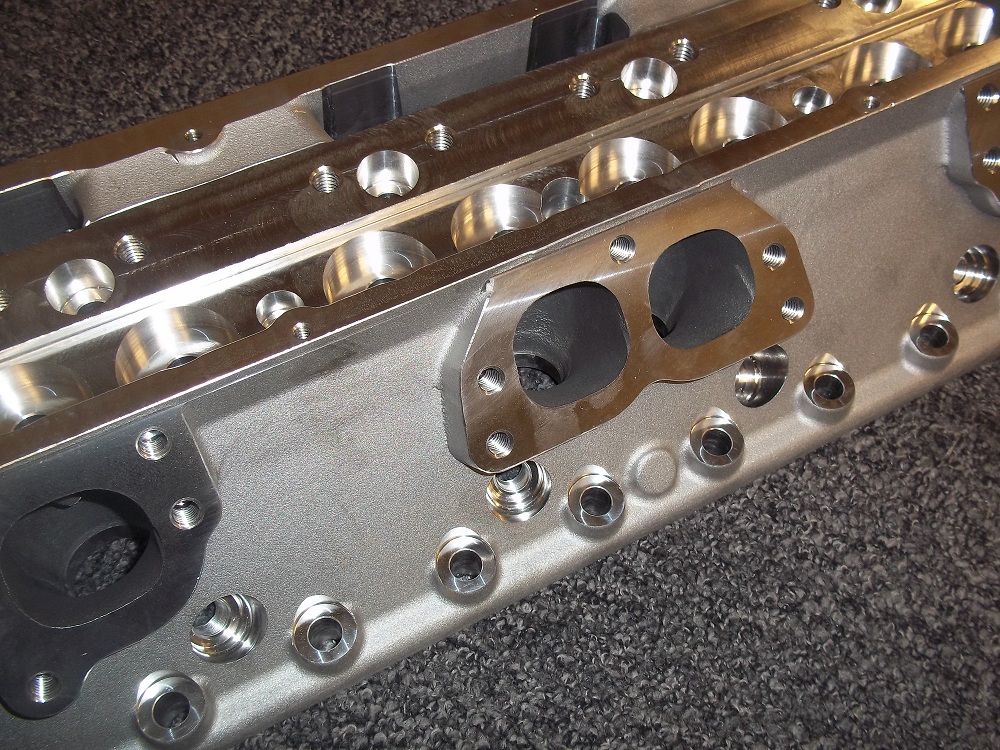

Pro-Filer 13º Wedge SBC

Cylinder Head and Manifold Discussion

Pro-Filer 13º Wedge SBC

Postby Chad Speier » Sat Dec 22, 2012 9:25 am





Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Sat Dec 22, 2012 9:40 am

Here is what they flowed on my bench with a 50º intake and exhaust seat.

Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Sat Dec 22, 2012 9:42 am

Here is what they flowed with an hour of work. Sized the bowl, moved the wall, pushed the PR area and finished the chamber.

.200 152
.300 229
.400 290
.500 335
.600 369
.700 388
.800 395
.900 397
1.00 399



Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Sat Dec 22, 2012 12:26 pm

It's wicked!

Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Sat Dec 22, 2012 1:33 pm

I spent Saturday morning on it..

300cc
4.185 fixture

.200 152
.300 227
.400 292
.500 341
.600 371
.700 393
.800 402
.900 407
1.00 411
1.10 414

4.155 fixture

.200 147
.300 226
.400 289
.500 338
.600 369
.700 387
.800 398
.900 402
1.00 404
1.10 406
Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Sat Dec 22, 2012 2:12 pm

.200 114
.300 155
.400 195
.500 226
.600 247
.700 261
.800 269
.900 273
1.00 275

NO PIPE, 1.580 valve, 1.430 throat


Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby redsmokin57 » Sat Dec 22, 2012 6:20 pm

Do you have any measurements to share on these heads? CC chamber and runner,port lengths and CSA?Any special manifold requirements?
Looking good by the way!
Cheers Steve
redsmokin57

Posts: 25
Joined: Wed Sep 29, 2010 3:40 am
Location: Townsville Nth Queensland Australia

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Sat Dec 22, 2012 9:37 pm

redsmokin57 wrote:Do you have any measurements to share on these heads? CC chamber and runner,port lengths and CSA?Any special manifold requirements?
Looking good by the way!
Cheers Steve


I haven't cc'd the chamber or measured the length yet. The runner is right at 2.95in² min and 300cc's. Takes a 15º manifold.

I'm not done and want another 15 or so cfm.
Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Sat Dec 29, 2012 11:21 am

This might be the port I have digitized. I took some high flow for more mid..

.200 148
.300 231
.400 297
.500 345
.600 380
.700 399
.800 408
.900 411
1.00 415




Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby Hammons Motorsports » Sun Dec 30, 2012 9:39 am

How does the velocity look compared to the SB2.2??
Bill and Cindi Hammons
Hammons Motorsports

95 Spizter, 421" SB2.2, 1.041 60', 4.76 @ 142.85
Hammons Motorsports

Posts: 127
Joined: Tue Nov 13, 2007 9:03 pm
Location: Back in the Mid West!!!

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Mon Dec 31, 2012 8:35 am

Hammons Motorsports wrote:How does the velocity look compared to the SB2.2??


The SB2 is a little different animal. This profile is unreal to me, should make tons of flat killer power!
Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Mon Dec 31, 2012 10:29 am

Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Wed Jan 02, 2013 5:35 pm

Made some progress today!

Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas

Re: Pro-Filer 13º Wedge SBC

Postby upsidedown » Thu Jan 03, 2013 3:04 pm

Chad Speier wrote:
Hammons Motorsports wrote:How does the velocity look compared to the SB2.2??


The SB2 is a little different animal. This profile is unreal to me, should make tons of flat killer power!


Chad not sure if you are willing to spend the time but I and maybe others would be interested to hear your thoughts on why different heads are "different animals". In the past you have said that 23 degree heads are velocity limited so obviously as the angle goes down things change. As an end user things like "flow curves" and "csa" are the only things that we have to go off but it would appear that there's much more involved depending on the casting than these parameters.

Appreciate any feedback and always looking to learn. Thanks.
upsidedown

Posts: 7
Joined: Tue Apr 27, 2010 3:52 am

Re: Pro-Filer 13º Wedge SBC

Postby Chad Speier » Thu Jan 03, 2013 4:15 pm

Basically, the taller the port, the better the mach index. So you can run the port faster via airspeed. The 23º being a low port has a bad "line of sight" for a lack of better words. Therefore you cannot run the speed as fast. That and the pushrod is will always be the killer on a 23º. This is why some, including myself, are so hell bent on making it match the amount of air it's moving. Some 23º heads move a ton of air but will never see it because you simply don't have enough area. Now a higher port can have the same area but due to the port shape, can run a faster airspeed, and still make power. Velocity is VE. The higher the VE, the faster the airspeed usually is.
Chad Speier
Chad Speier

Posts: 1846
Joined: Mon Nov 12, 2007 6:03 pm
Location: Hays, Kansas
